| Bandwidth |
200 MHz |
| Product Type |
Scopemeters |
| Bandwidth (MHz) |
200 |
| Rise time (vertical deflection) |
1.7 nsec |
| Voltage (AC/DC) range |
0 to 1000 V |
| Time base (horizontal deflection) |
5 nsec/div to 5 sec/div |
| Max real time sample rate |
2.5 GS/s |
| Approval |
UL-3111-1, CAN/CSA C22.2 No. 1010.1, ANSI?ISA-S 82.01-94 |
| Compliance |
EN61010-1, Pollution degree 2, 1000 V Cat II, 600 V CAT III |
| Input sensitivity |
2 mV/div to 100 V/div |
| Record length |
27,500 points per input |
| Display |
Color |
| Inputs |
2 scope and 1 multimeter |
| Sample rate (Gs/s) |
2.5 |
| Dimensions |
6 3/4"W x 10"H x 2 1/2"D |
| CE Compliance |
Yes |

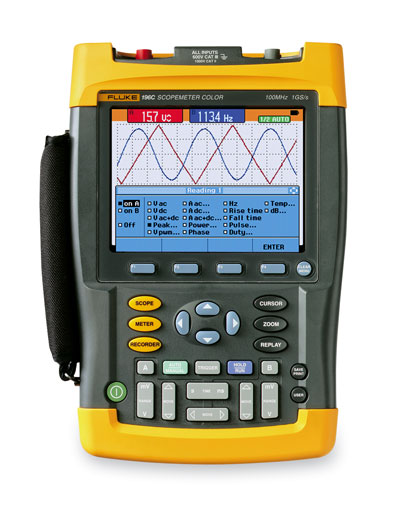

| Model |
FLUKE-199C/003 |
| Make |
SCOPEMETER |
| Brand |
Fluke |
