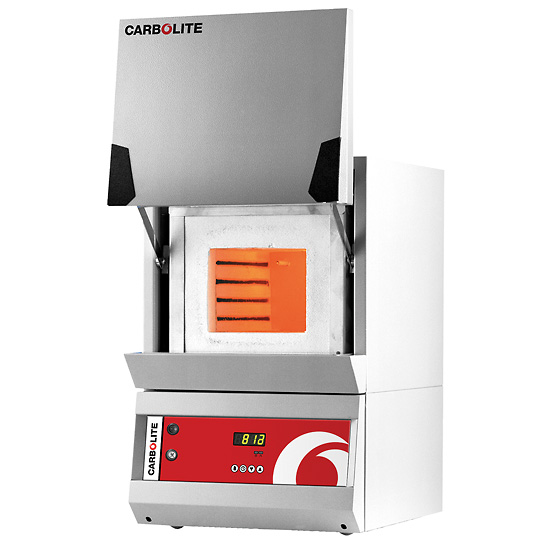

Furnace,high Temp,1600c Box (RHF16/3/3216P1)

YO-33859-03
Loading price...

Call for availability.
Qty:

  • Combines high temperature capability with an advanced controller at a very affordable price

  • Heat to 1600°C in less than one hour

  • Program allows you to ramp temperature at controlled rates

This furnace’s high-temperature output is great for heat treating, reacting studies, sintering processes, and ceramic firing. Powerful silicon carbide heating elements ensure quick heating and a uniform chamber temperature. Quality chamber construction includes a durable refractory brick entrance, a long-life cast alumina hearth, and energy-efficient ceramic fiber insulation.

Engineered with your safety in mind, the furnace has a double shell construction to keep the outer case cool, a door switch that disengauges power when the door is opened, and the easy-to-operate vertical-swing door keeps heat away when opened. Furnace is equipped with a chimney vent for process exhaust.

Furnace temperature controller utilizes PID technology for highly accurate 16-segment programmability with up to 8 ramps (either up or down) and 8 dwells (time soaked). A three-color LCD display simultaneously indicates actual furnace temperature and set point temperature. Temperature may be displayed in °C or °F. Unique control system increases power to the heating elements to compensate for element resistance change during the aging process.
Specifications
Product Type High-Temperature Furnace
Minimum temperature (º C) 0
Maximum temperature (º C) 1600
Minimum temperature (º F) 32
Maximum temperature (º F) 2912
Temp uniformity ±4°C
Chamber size (" H) 5.125
Chamber size (" D) 8
CE Compliance Yes
Control type PID microprocessor
Display LCD
Manufacturer number RHF16/3/3216P1
Power (VAC) 208/240
Power (Hz) 50/60
Model RHF16/3/3216P1
Brand Carbolite
