Home  >  Fermentation

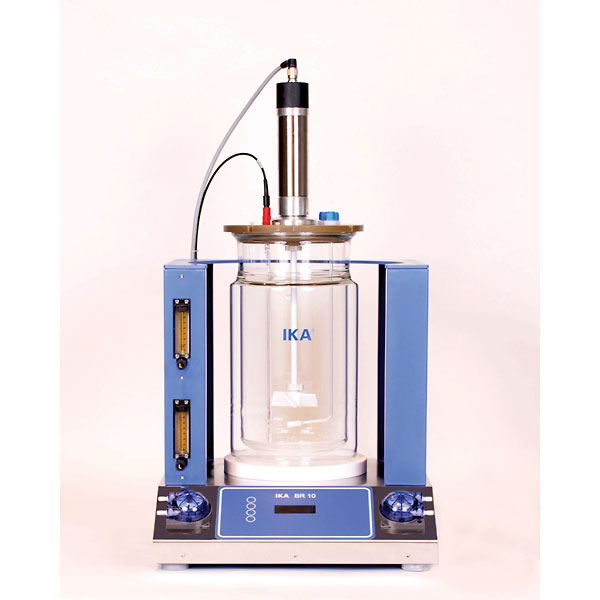

IKA BR 10 Bioreactor, 230V, 50/60Hz

YO-29206-02
Loading price...

Call for availability.
Qty:

  • Sleek design and easy-to-use automated system ensure optimal cell growth!

  • Chemically inert and autoclavable wetted surfaces protect your samples and are easy to clean

  • Monitor your data in real time or collect for future analysis

  • Fully jacketed 10-L system is designed specifically for cultivating your cells with optimum performance and conditions

  • All functions are self-contained, in a compact footprint with an impressive price point

  • 2-year warranty with product registration

This all-in-one controlled system with a user-friendly interface design provides optimal conditions for algae or other cell cultivation to grow in a non-natural environment. The simplistic design was created in collaboration with marine scientists to provide the basic functions required for optimal growth of phototrophic organisms. Applications include growing small phototrophic organisms such as algae, moss plants, and even many species of bacteria.

This 10-liter model is comprised of a fully jacketed vessel specifically designed for temperature-sensitive samples. For additional temperature control, attach recirculator (See "Related Products" on sidebar). The vessel is surrounded by six compact, double-fluorescent lamps that are removeable, allowing photosynthesis to take place in a controlled environment.

The digitally controlled PTFE overhead stirrer includes two 4-blade adjustable PTFE propellers, and is used for agitation which helps with oxygen transfer, but preserves your fragile cells while they are gently mixed and cultivated. The ergonomic base has a simple yet functional control system, which is conveniently located beneath the glass vesel for easy operation in a small footprint. Use the interface to control all of the variables including lighting, motion, pH value, and temperature. The peristaltic pump provides a 450 mL/min flow rate. The monitoring software can be installed on any PC, and monitors pH, temperature, and stirrer speed via real time.

The system can be customized for different applications; call our Application Specialists for assistance.
Specifications
Product Type Fermentation Bioreactors
Working volume (Liters) 10
Total volume (Liters) 12 liters
Motor speed Integral speed controller, 40 W / 15:1 gear reduction
Port size Inlet/Outlet tube OD = 1/4" (0.63cm)
Stirrer type PTFE encapsulated stirrer with two 4-blade PTFE propellers, Overhead in-line drive DC motor 3-255 rpm, 12VDC
Probe type pH probe: 12 mm glass/gel filled Ag/AgCl reference. Temp probe:-200 to 600°C, RTD PT 100, PTFE coated, 3 wire
Heating element 600 µmole/sec/m2 of photosynthetically active radiation (PAR)
Display Digital HMI bio-controller integral with cabinet base
Dimensions (" W) 20
Dimensions (" H) 36.2
Dimensions (" D) 21.65
Power (VAC) 230
Power (Hz) 50-60
Manufacturer number CB415
Brand IKA
