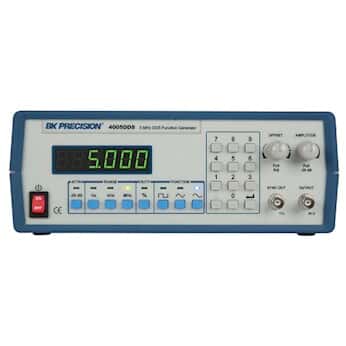

B&K Precision 4005DDS Function Generator, 5 MHz

B&K Precision 4005DDS Function Generator, 5 MHz
Zoom Image
Representative image only.
Add to Compare
B&K Precision – Mfr # 4005DDS – Item # EW-20045-66
Adjustable duty cycle and DC offset provides additional flexibility
  • Direct digital synthesis (DDS) architecture
  • User-selectable frequency from 1 Hz to 5 MHz
  • Sine, square, or triangle waveform output
  • Variable DC offset allows output directly into circuits at the correct bias level
  • Bright, easy-to-read LED display
  • 1 year warranty
MORE +

SPECS & DESCRIPTION

Specifications & Description

  • Min Frequency Range (Hz)1
  • Max Frequency Range (MHz)5
  • Wave FormSine, square, triangle
  • Sine Wave Distortion20 kHz (-50 dBc); 20 kHz to 5 MHz (-30 dBc)
  • Amplitude0.01 to 10 Vp-p (into 50 Ω)
  • Impedance± 2% (50 Ω)
  • Square Wave Symmetry1 Hz to 5 MHz
  • Variable Duty Cycle20 to 80%, up to 3 MHz (for square)
  • Vertical Resolution4 digits
  • Rise Time≤ 35 nsec
  • DC Offset VoltageVariable ± 10 V (open circuit); ± 5 V (into 50 Ω)
  • Power (VAC)115 / 230
  • Power (Hz)50/60 Hz
  • Height (in)4
  • Width (in)11
  • Depth (in)11 3/4
  • DescriptionFunction Generator, 5 MHz
  • Warranty1 Year
1 Year WarrantyConformite Europeenne

Key Features

  • Direct digital synthesis (DDS) architecture
  • User-selectable frequency from 1 Hz to 5 MHz
  • Sine, square, or triangle waveform output
  • Variable DC offset allows output directly into circuits at the correct bias level
  • Bright, easy-to-read LED display
  • 1 year warranty

More About this Item

The B&K Precision 4005DDS function generator is a versatile 5 MHz DDS (direct digital synthesis) function generator with a 4-digit display. The instrument generates sinusoidal, triangular, and square waveforms over the 1 Hz to 5 MHz range at precise frequencies. The output voltage can be varied from 0 to 10 Vp-p into 50 ohms or to 20 Vp-p into open circuit. A continuously variable DC offset allows the output to be injected directly into circuits at the correct bias level.
