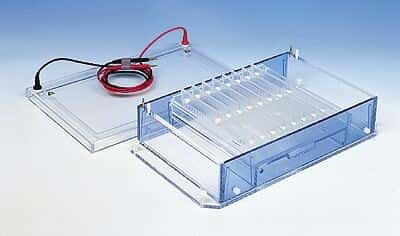

Cole-Parmer High-Throughput Horizontal Gel System

Representative image only.
Cole-Parmer Item # EW-28562-00
For the rapid screening of samples loaded directly from microcell plates
  • UV-transparent acrylic gel tray has “anchors” to prevent gel from floating

$682.00USD / Each
Spectrum Chemical Agarose
Spectrum Chemical Agarose
$125.50 - $2,552.50USD / Each


Specifications & Description

  • Buffer Solution Required (mL)3000
  • Gel Length (cm)26
  • Gel Width (cm)26
  • Cell Width (in)18.88
  • Cell Depth (in)11
  • Cell Width (cm)14.96
  • Cell Height (cm)10.16
  • Cell Depth (cm)27.94
  • DescriptionHigh-Throughput Horizontal Gel System


safety cover with interlocking power leads, tapered baffles for casting gels, UV-transparent gel tray, cooling ports, buffer recirculation ports, and long-life platinum electrodes. Order combs and additional gel trays separately.

Key Features

  • UV-transparent acrylic gel tray has “anchors” to prevent gel from floating

More About this Item

Multiple comb slots let you configure gels for several simultaneous short runs—ideal for screening large numbers of samples. A separate cooling chamber allows flow of water underneath gel bed to maintain constant temperature. The tapered-baffle design lets you cast gel directly in the unit.
