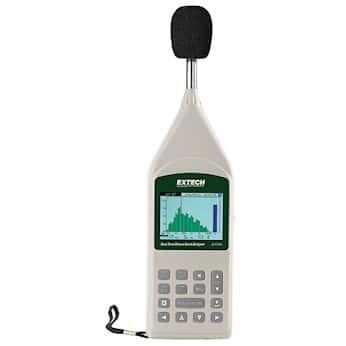

Extech 407790A Real-Time Octave Band Analyzer

Representative image only.
Extech Mfr # 407790A – Item # EW-40425-02
Analyze 1/1 and 1/3 octave bands simultaneously
  • Measures from 30 to 130 dB with ±1.5 dB accuracy
  • Meets ANSI and IEC Type 2 standards
  • Stores up to 12,280 data records with date-and-time stamp
  • Connect to chart recorders and other external recording devices via analog AC/DC outputs

$3,999.00USD / Each
For better pricing please sign in.

$205.00USD / Each

for an additional
$205.00USD / Each
Time to recalibrate? Click on the calibration service to view details, then order.

SPECS & DESCRIPTION

Specifications & Description

  • Decibel (Db) Low Range (dB)30
  • Decibel (Db) High Range (dB)130
  • Accuracy‡1.5 dB
  • ResponseFast, Slow
  • WeightingA, C, and Z
  • Meter ClassType 2
  • ComplianceANSI S1.4 Type 2, EN IEC 60651, EN IEC 60804, EN IEC 1260-1995
  • OutputAnalog AC/DC, USB
  • DisplayLCD
  • Battery TypeC Battery (4)
  • Height (in)13
  • Width (in)4
  • Depth (in)2
  • Height (cm)34.5
  • Width (cm)10
  • Depth (cm)6
  • DescriptionReal Time Octave Band Analyzer

Includes

Microphone windscreen, 4GB microSD card, software, USB cable, four C batteries, mini screwdriver, AC adapter, and carrying case.

Key Features

  • Measures from 30 to 130 dB with ±1.5 dB accuracy
  • Meets ANSI and IEC Type 2 standards
  • Stores up to 12,280 data records with date-and-time stamp
  • Connect to chart recorders and other external recording devices via analog AC/DC outputs

More About this Item

The Real Time Octave Band Analyzer operates as a Type 2 sound level meter with 1/1 and 1/3 Octave Band real-time noise display and analyses. It maintains noise level statistics for internal and external audits, and acquires real time analysis of noise from any source such as machinery, heavy equipment, or vehicles.

A large color backlit LCD displays Leq, LE, Lmin/Lmax, Lp, L05, L10, L50, L90, and L95 readings. Choose between A, C and Z frequency weighting with slow, fast, and impulse time responses. Measurements can be initiated by one of three triggers: time, level and external.

A built-in memory stores up to 12,280 data records in sound meter mode and 1,024 data points in octave mode. Stored data can be transferred to a PC via USB cable or saved on a 4GB removable microSD card to be analyzed later.

Compliance: ANSI S1.4 Type 2, EN IEC 60651, EN IEC 60804, EN IEC 1260-1995
