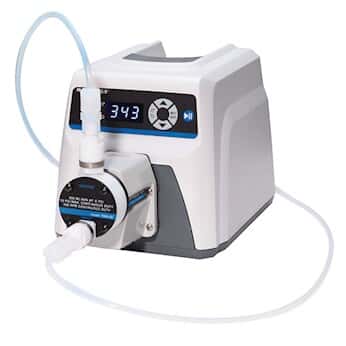

Masterflex L/S PTFE-Diaphragm Pump System; 6 to 600 rpm, 90 to 260 VAC

Masterflex L/S PTFE-Diaphragm Pump System; 6 to 600 rpm, 90 to 260 VAC
Zoom Image
Representative image only.
Add to Compare
Masterflex – Item # EW-77915-10
Ideal for chemical feed/metering and applications requiring high-purity, high-pressure or both
  • Flow range: 80 to 800 mL/min
  • Pump at pressures up to 50 psi (3.4 bar)
  • PTFE wetted parts help maintain fluid purity
  • Pump through filters or into pressurized system
  • Check valve on inlet side of pump holds prime for up to two hours when pump is off
MORE +

$3,040.00USD / Each
Add To Cart
+ADD TO LIST

$170.00USD / Each

for an additional
$170.00USD / Each
Time to recalibrate? Click on the calibration service to view details, then order.

SPECS & DESCRIPTION

Specifications & Description

  • Pump SeriesL/S
  • Control TypeVariable-Speed Digital
  • Min RPM6
  • Max RPM600
  • Number of Channels1
  • Max Flow Rate Per Channel (mL/min)800
  • Min Flow Rate Per Channel (mL/min)80
  • Drive07528-10 (L/S® Precision Variable-Speed Drive)
  • Pump Head07090-42 (L/S® PTFE-Diaphragm Pump Head)
  • Tubing06605-15, 12-ft (PTFE Tubing, 1/4" x 3/8")
  • Drive IP ratingIP 33
  • Power (VAC)90 to 260
  • Power (amps)1.8A at 115v; 1.2A at 230v
  • Power (Hz)50/60
  • Width (in)8.3
  • Height (in)8.5
  • Length (in)17.3
  • Width (cm)21.08
  • Height (cm)21.59
  • Length (cm)43.94
  • DescriptionL/S PTFE-Diaphragm Pump System; 6 to 600 rpm, 90 to 260 VAC

Includes

PTFE-diaphragm pump head 07090-42, 12 ft (3.6-m) of PTFE tubing (1/4" ID x 3/8" OD), Masterflex; L/S; precision variable-speed drive 07528-10 (6 to 600 rpm), two PFA pipe adapters (1/4" NPT(F) x 3/8" OD), foot valve, mounting tools, and coupling hardware.

Key Features

  • Flow range: 80 to 800 mL/min
  • Pump at pressures up to 50 psi (3.4 bar)
  • PTFE wetted parts help maintain fluid purity
  • Pump through filters or into pressurized system
  • Check valve on inlet side of pump holds prime for up to two hours when pump is off
  • Unique geometry minimizes fluid churning and dead volume for high metering accuracy without reagent contamination
