Sludge Judge C09247WA Sampler System, 3/4" OD, 15 ft

Sludge Judge C09247WA Sampler System, 3/4
Always in Stock
Zoom Image
Representative image only.
Add to Compare
Sludge Judge – Mfr # C09247WA – Item # UX-05465-70
(1) Write a Review
Measure settled solids in sewage treatment plants, chemical plants, or food processing facilities
  • Take accurate, noncaustic measurement of settable solids, 5% or less
MORE +

PRODUCT OPTIONS

See All 3 Items in this Product Family

$121.00USD / Each
Add To Cart
+ADD TO LIST
Often Bought with…
Cole-Parmer Vacuum Filtration Holder; membrane size; 90mm
Cole-Parmer Vacuum Filtration Holder; membrane size; 90mm Add To Cart
$508.00USD / Each

SPECS & DESCRIPTION

Specifications & Description

  • Length (in)180
  • Length (ft)15
  • Diameter (in)0.75
  • Outside Diameter (OD) (in)0.75
  • Length (cm)457.2
  • DescriptionSampler System, 3/4" OD, 15 ft

Key Features

  • Take accurate, noncaustic measurement of settable solids, 5% or less

More About this Item

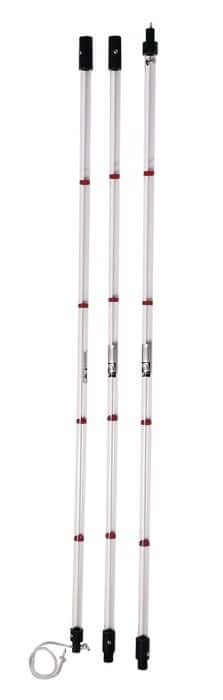

A variety of Sludge Judge samplers are available to fit your sampling needs. Order complete assemblies to receive three 5-ft (1.5-m) sections that screw together, or separate component pieces if customized sampler lengths are desired. The bottom piece has a ball valve that allows liquid in when lowered into the sample and seals the sample when raised from the liquid. The middle section connects the top and bottom sections, order additional middle sections to increase the overall length. The top section has a nylon rope that aids in sampling. All sections feature 1-ft (0.3-m) increments which allow you to easily indentify how much sludge is in the sampler body.

Basic Sludge Judge and Sludge Judge Ultra versions have 3/4" (1.9 cm) diameter pipe sections and hold approximately 3 oz (89 mL) of fluid per foot. Sludge Judge II version has 1-1/4” (3.2 cm) diameter pipe sections doubling the overall capacity of the sampler. Sludge Judge Ultra additionally features an ultraviolet stabilizer which reduces material degradation from UV light.

ACCESSORIES

REVIEWS

REVIEW SNAPSHOT®

by PowerReviews
Sludge Judge C09247WA Sampler System, 3/4" OD, 15 ft

5.0

(based on 1 review)

Reviewed by 1 customer

Displaying review 1

Back to top

6/21/2017

5.0

I would buy this product again.

By

from Baton Rouge, LA

About Me Academic/Professional Researcher

Verified Buyer

Pros

  • Accurate
  • Durable
  • Easy To Use
  • Works Properly

Cons

    Best Uses

    • In The Field

    Comments about Sludge Judge C09247WA Sampler System, 3/4" OD, 15 ft:

    N/A

    Bottom Line Yes, I would recommend this to a friend

    Was this review helpful? Yes / No

     - You may also flag this review

    Displaying review 1

    Back to top

    Q&A

    Do you have questions about this product?

    Get answers from real customers and in-house experts with AnswerBox.

    8 Questions | 8 Answers
    Displaying questions 1-8

    • Q:

      we are looking at sampling sludge on the base of a reservoir approx 8m deep. would your system be suitable? thanks
      Asked on 7/5/2011 by Jon from The Lakes

      1 answer

      • STAFF EXPERT

        A:

        With extension sections, yes. Buy the complete sampler 05465-70, then add three extension sections 05465-74, for a total length of 9m. Add more extensions if standing on a catwalk or other elevated platform above the water surface.

        Answered on 7/6/2011 by Jon from Technical Support

    • Q:

      Hi. Many grease traps are smaller and underneath sinks. Is there a smaller version that can be used in tight spaces?
      Asked on 6/28/2011 by P from Vancouver, BC

      1 answer

      • Staff Reviewer

        A:

        The 3/4" diameter is the smallest diameter sampler we offer at this time.

        Answered on 6/30/2011 by Jen from Technical Support

    • Q:

      Will this apparatus be suitable for measuring the amount of oil and grease held in a commercial grease trap?
      Asked on 2/28/2011 by Anonymous

      1 answer

      • STAFF EXPERT

        A:

        Yes, as long as the oil/grease is still in liquid form.

        Answered on 3/2/2011 by Jack from Technical Support

    • Q:

      I need to measure the amount of oil in a oil/water/waste seperator, to determine need for pumping out system,is this the correct tool?
      Asked on 10/14/2010 by Nick(really!) from Holland MI 49426

      1 answer

      • STAFF EXPERT

        A:

        This sampler will allow you to view the depth of the oil, water, and waste layers in your system. The sampler is marked every foot to assist in measuring depth. This unit consists of 3 x 5ft sections, if you require a longer sampler, you can order additional lengths as our 05465-74.

        Answered on 10/18/2010 by Josh from Technical Support

    • Q:

      how many inches or feet does it have to stick out above the water after the tube touch the bottom of the tank?
      Asked on 7/28/2010 by wasteguy from Guam

      1 answer

      • STAFF EXPERT

        A:

        There is no set distance the tube must stick out above the water when sampling. As long as the top of the tube stays above the surface of the water and doesn't become submerged your sample should be a good representation.

        Answered on 7/30/2010 by Josh from Technical Support

    • Q:

      CAN THIS BE USED TO DETERMINE WETHER THERE IS A FLOATING LAYER OF SLUDGE IN A SYSTEM BENEATH THE LIQUID SURFACE.
      Asked on 6/2/2010 by COLIN from CANADA

      1 answer

      • Staff Reviewer

        A:

        Yes, the sampler is slowly lowered into the system and will take a sample from each level as it passes through.

        Answered on 6/4/2010 by Jen from Technical Support

    • Q:

      Is this suitable for measuring the depth of bottom sludge and floating scum in septic tanks to determine if tank pumping is required?
      Asked on 4/17/2010 by Bill from Maine

      1 answer

      • Staff Reviewer

        A:

        This unit will help measure the depth of sludge on the bottom of the tank, but it will not aid in determining floating scum levels.

        Answered on 4/20/2010 by Jen from Technical Support

    • Q:

      How do you Clean this after use?
      Asked on 2/12/2010 by Darren from Trinidad

      1 answer

      • STAFF EXPERT

        A:

        This comes apart so that it can be cleaned and rinsed; then it can be put back together to avoid cross contamination of samples.

        Answered on 2/12/2010 by Jen from Technical Support
    Displaying questions 1-8
