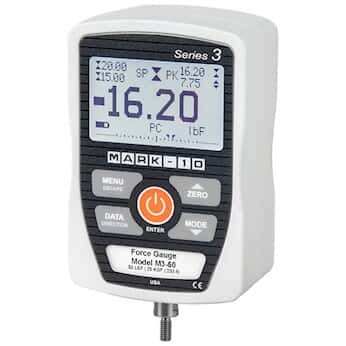

Mark-10 M3 Series Digital Force Gauges

Compact, economical gauges for handheld or test stand applications
  • High speed 2,000 Hz peak sampling rate
  • USB data output
  • Backlit graphic display with large digits
  • Live load bar graph with audio/visual overload alarms
  • Programmable go/no go limits, with audio/visual alarms
  • Peak readings always shown on display
  • Ergonomic, reversible housing for hand held or test stand use
These digital force gauges are designed for tension and compression force testing applications. The gauges feature a sampling rate of 2000 Hz, producing accurate results under a wide range of test conditions. The easy-to-use menu driven interface and backlit LCD with large characters makes accessing the gauges’ features and configurable parameters simple.

Gauges include MESUR™Lite and MESURgauge demo data acquisition software and a USB port for conveniently downloading data to a PC for further analysis and report tabulation. Units feature set point indicators for pass/fail testing and are housed in an ergonomic, reversible aluminum housing that allows for hand held or test stand mounting applications.
$650.00 - $800.00USD / Each

10 variations of this product are available.

See All Product Options Below
10 PRODUCT OPTIONS
  • filter by:
Compareitem specifications
Capacity (lbs) Resolution (lbs)
Availability Pricing
Mark-10 M3-012 Force Gauge, 0.12 lbF / 50 gF / 0.5 N EW-25301-15 Mfr # M3-012
COMPARE
0.12 0.0001
$800.00USD / Each
Mark-10 M3-025 Force Gauge, 0.25 lbF / 100 gF / 1 N EW-25301-16 Mfr # M3-025
COMPARE
0.25 0.0002
$800.00USD / Each
Mark-10 M3-05 Force Gauge, 0.5 lbF / 250 gF / 2.5 N EW-25301-17 Mfr # M3-05
COMPARE
0.5 0.0005
$800.00USD / Each
Mark-10 M3-2 Force Gauge, 2 lbF / 1 kgF / 10 N EW-25301-18 Mfr # M3-2
COMPARE
2 0.002
$650.00USD / Each
Mark-10 M3-5 Force Gauge, 5 lbF / 2.5 kgF / 25 N EW-25301-19 Mfr # M3-5
COMPARE
5 0.005
$650.00USD / Each
Mark-10 M3-10 Force Gauge, 10 lbF / 5 kgF / 50 N EW-25301-20 Mfr # M3-10
COMPARE
10 0.01
$650.00USD / Each
Mark-10 M3-50 Force Gauge, 50 lbF / 25 kgF / 250 N EW-25301-22 Mfr # M3-50
COMPARE
50 0.05
$650.00USD / Each
Mark-10 M3-100 Force Gauge, 100 lbF / 50 kgF / 500 N EW-25301-23 Mfr # M3-100
COMPARE
100 0.1
$650.00USD / Each
Mark-10 M3-200 Force Gauge, 200 lbF / 100 kgF / 1000 N EW-25301-24 Mfr # M3-200
COMPARE
200 0.2
$800.00USD / Each
Mark-10 M3-500 Force Gauge, 500 lbF / 250 kgF / 2500 N EW-25301-25 Mfr # M3-500
COMPARE
500 0.5
$800.00USD / Each
Showing 1- 10 of 10
