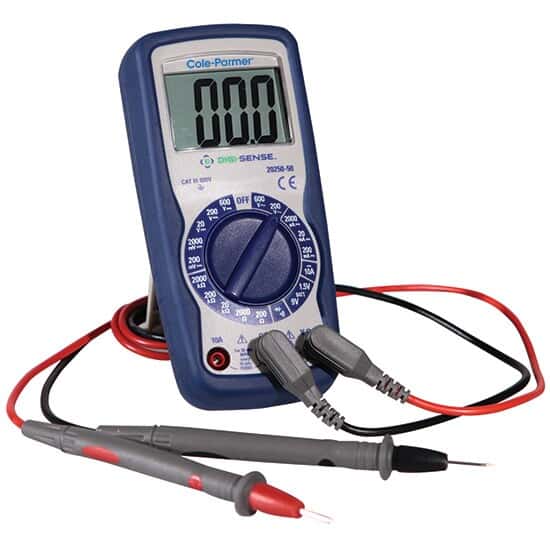

Cole-Parmer Compact Digital Multimeter, Manual-Ranging with NIST-Traceable Calibration

Representative image only.
Cole-Parmer Item # EW-20250-50
Pocket sized—have on hand wherever you go
  • Reliable measurements, guaranteed! Precalibrated to NIST-traceable standards
  • Easily select a function with a single rotary switch
  • Stay safe and prevent damage with overload protection
  • Increased durability with double-molded plastic housing
  • Tilt stand for easy hands-free viewing
  • CAT III-600 V safety rating
  • 2 year warranty

PRODUCT OPTIONS

$37.44USD / Each
$46.80USD / Each
Time to recalibrate?
for an additional
$119.00USD / Each
Cole-Parmer Freeze Spray, 10 oz; 6/Pk
$76.50USD / Case of 6
$115.50USD / Case of 6

SPECS & DESCRIPTION

Specifications & Description

  • DC Min (Volts)0.2
  • DC Max (Volts)600
  • DC Voltage Accuracy±0.8%
  • DC Min (amps)0.0002
  • DC Max (amps)10
  • DC Current Accuracy±2.0%
  • AC Min (Volts)200
  • AC Max (Volts)600
  • Ac Voltage Accuracy±1.2%
  • Resistance Min (KΩ)200
  • Resistance Max (KΩ)2000
  • Resistivity Accuracy±1.0%
  • Continuity< 30 Ω
  • Continuity / Diode Test1 mA
  • Diode Tester1 mA
  • Duty CycleNo
  • Nc Voltage DetectorYes
  • Count2000
  • Digits3 ½
  • DisplayLCD
  • Safety RatingCAT II 2,000 V, Pollution degree 2, CAT III 600 V
  • Power9V battery
  • Width (in)27.6
  • Height (in)59.1
  • Depth (in)18.9
  • Width (cm)7
  • Height (cm)15
  • Depth (cm)4.8
  • DescriptionCompact Digital Multimeter, Manual Ranging with NIST Traceable Calibration
  • Warranty2 Years
Two year warrantyConformite EuropeenneNIST Traceable CalibrationUL Listed.

Includes

Test leads and 9V battery.

Key Features

  • Reliable measurements, guaranteed! Precalibrated to NIST-traceable standards
  • Easily select a function with a single rotary switch
  • Stay safe and prevent damage with overload protection
  • Increased durability with double-molded plastic housing
  • Tilt stand for easy hands-free viewing
  • CAT III-600 V safety rating
  • 2 year warranty

More About this Item

Versatile and simple-to-use digital multimeters safely measure common ranges of voltage, current, and resistance, and are packaged in a very convenient compact size. They feature diode testing, continuity check with audible buzzer, a measurement rate of 2 readings per second, overrange and low-battery indication, and auto power-off.

Basic model 20250-50 offers manual ranging and measures AC and DC voltage to 600 V, resistance with continuity and diode function, and DC current to 10 A. Plus a dedicated battery test function lets you check the quality of your 9 V and 1.5 V batteries.

Full-featured model 20250-51 also measures AC current to 10 A, capacitance, frequency, duty cycle, and temperature via a type K thermocouple probe. An autoranging feature automatically selects the optimal measuring range for maximum resolution. Plus you’ll work more efficiently with the data HOLD and relative functions.
