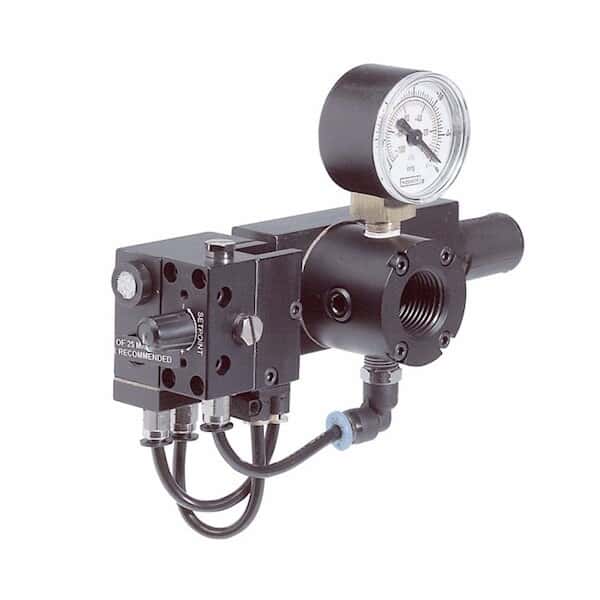

Cole-Parmer Venturi with Air Saver technology,28" Hg,1.2 CFM, With Gauge

Cole-Parmer Venturi with Air Saver technology,28
Zoom Image
Representative image only.
Add to Compare
Cole-Parmer – Item # EW-78165-61
Minimizes compressed air usage –which saves you money!
  • Vacuum level switch shuts off air supply when desired vacuum setting is reached
  • Powered only by compressed air—no batteries or electrical connections
  • Holds vacuum even if air supply is lost
  • 5 year warranty
MORE +

PRODUCT OPTIONS

See All 2 Items in this Product Family

$1,120.00USD / Each
Add To Cart
+ADD TO LIST
Cole-Parmer PVC Vacuum Tubing, 1/4
Cole-Parmer PVC Vacuum Tubing, 1/4" ID x 5/8" OD; 50 Ft
$555.00USD / Pkg of 1
Often Bought With
Cole-Parmer Threaded to Hose Barb Fitting, Straight Adapter, Natural Kynar®, Cleanroom Packed, 1/8
Cole-Parmer Threaded to Hose Barb Fitting, Straight Adapter, Natural Kynar®, Cleanroom Packed, 1/8" NPT(M) x 1/4" ID; 10/Pk Add To Cart
$27.00USD / Pkg of 10

SPECS & DESCRIPTION

Specifications & Description

  • Wetted PartsAluminum, Brass, Buna N
  • Free-Air Capacity (CFM)1.2
  • Free-Air Capacity (LPM)34
  • Free-Air Capacity (LPH)2040
  • Max Flow Rate (CFM)1.19
  • Max Flow Rate (Liters/min)34
  • Max Vacuum (in Hg)28
  • Max Vacuum (mbar)65.1
  • Max Vacuum (mm Hg)48.8
  • Max Vacuum (torr)48.8
  • Air Input At 80 Psi (CFM)1.8
  • Air Input At 80 Psi (LPM)51
  • Port Size1/4" NPT(F) Air inlet port1/8" NPT(F) Vacuum port
  • Height (in)0.75
  • Length (in)4.625
  • Height (cm)1.91
  • Length (cm)11.75
  • Height (mm)19.1
  • Length (mm)117.5
  • DescriptionVenturi with Air Saver technology,28" Hg,1.2 CFM, With Gauge
  • Warranty5 Years
5 Year Warranty

Key Features

  • Vacuum level switch shuts off air supply when desired vacuum setting is reached
  • Powered only by compressed air—no batteries or electrical connections
  • Holds vacuum even if air supply is lost
  • 5 year warranty

More About this Item

The air saver circuitry is perfect for any lab or process application. Powered by compressed air only; the pneumatic vacuum switch is the brain behind the system that constantly monitors and controls the vacuum level. Eliminates the constant air loss and noise of most venturi vacuum pumps. Since it uses no electricity it is inherently intrinsically safe. The vacuum switch is adjustable from 0 to 30” Hg with a hysteresis of 3”Hg.
