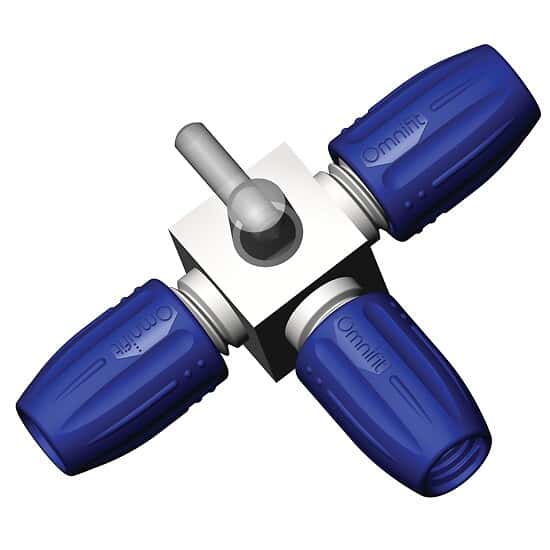

Diba Omnifit® Standard Valve for 1 to 4 mm OD Tubing, 3-way, tee, single key; 1/ea

Name: Diba Omnifit® Standard Valve for 1 to 4 mm OD Tubing, 3-way, tee, single key; 1/ea
Brand: Diba
SKU: 2193919
Price: 196.75 USD
Availability: InStock

Zoom Image

Representative image only.

Add to Compare

Diba Omnifit® Standard Valve for 1 to 4 mm OD Tubing, 3-way, tee, single key; 1/ea

Diba | Mfr: 1109| Item: UX-21939-19

Connect various types of tubing with low dead volume

Use with 1 to 4 mm OD tubing ... READ MORE

$196.75USD / Each

Add To Cart

+ADD TO LIST

PRODUCT OPTIONS

See All 3 Items in this Product Family

Product Description

Includes

Polypropylene (PP) caps, FKM O-rings, and PTFE cones (1.5 mm OD)

Key Features

Use with 1 to 4 mm OD tubing

More About this Item

Quickly and easily connect semi-rigid tubing such as PTFE, ETFE, and FEP as well as rigid materials such as glass, PEEK, and stainless steel. Use the interchangeable components to create chemically inert fluid pathway connections and flat-bottom ports (using Gripper fittings). Fittings are autoclavable (remove caps first). Order colored caps quickly and easily color code multiple fluid lines.

Specifications

Fitting MaterialPTFE/PP
Length (")2 13/64
Width (InchShort)1 11/32
Valve MaterialPTFE
Sterilization MethodAutoclave without caps
Connection TypeCompression
Number Of Ports3
Compression Size / Tube Od (Port 1) (mm)4
Compression Size / Tube Od (Port 2) (mm)4
Compression Size / Tube Od (Port 3) (mm)4
Min Temperature (° F)39
Max Temperature (° F)140
Min Temperature (° C)4
Max Temperature (° C)60
Max Operating Pressure (PSI)50
Orifice Dimensions (mm)1.5
DescriptionOmnifit® Standard Valve for 1 to 4 mm OD Tubing, 3-way, tee, single key; 1/ea
