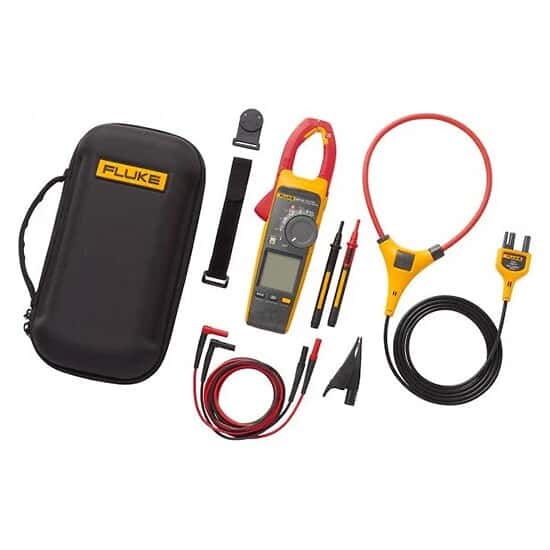

iFlex flexible current probe (48 cm; 18"), TL224 silicone insulated test leads, TP175 adjustable length test probes, AC285 grounding clip, TPAK magnetic hanging kit, with 23 cm (9") hanging strap, and carrying case.
Key Features
Get accurate voltage and current measurements using the clamp jaw
Measure extremely high current with iFlex® probe
Take three-phase voltage and current tests in three quick steps
Color changing screen indicates stable measurements
3 year warranty
More About this Item
The Fluke 377 FC and 378 FC clamp meters use FieldSense technology for safer and faster voltage and current measurements. Simply clip the black test lead to any electrical ground then place the clamp jaw around the conductor. The clamp jaw quickly measures voltage and current without touching any live wires then displays the measurement on the meter. The 34 mm (1-5/16") jaw opening is ideal for use in small compartments or boxes with tightly arranged electrical wires. For your convenience and safety, the display turns green when a stable FieldSense measurement is detected. Use the included 48 cm (18") diameter iFlex probe to measure extremely high current measurements. The probe handles AC current as high as 2500 A and provides access to large conductors in tight spaces.
Meters also completes three-phase measurements in quick, easy steps. A full set of phase-to-ground and phase-to-phase values are calculated and shown on the meter. Use the Fluke Connect® software to view the values as well as auto-calculated phase rotation on your smart phone. The screen turns bright green when continuity is detected—ideal for noisy work areas. The included TPAK magnetic hanging kit comes with a magnet and a hook strap for nonmagnetic surfaces to hang your meter for convenient hands-free operation.
Specifications
DC Max (Volts)600
DC Voltage Accuracy1% ± 5 digits
Current (AC/DC)Jaw: 999.9 A (AC/DC); iFlex probe: 2500 A (AC)
AC Max (Volts)1000
Ac Voltage AccuracyFieldSense ≤ 4/0 AWG: 3% ±5 digits (45 Hz to 66 Hz) ≥ 4/0 AWG: 5% ±5 digits (45 Hz to 66 Hz) Test leads1% ±5 digits (20 Hz to 500 Hz)
AC Current AccuracyJaw: 2% ± 5 digits (45 Hz to 66 Hz); Iflex: 3% ±5 digits (5 Hz to 500 Hz)
Resistance Max (Ω)600
Resistance Max (KΩ)6
Resistance Max (MΩ)0.06
Capacitance Max (mF)1
Capacitance Accuracy1% ±4 digits
Resistivity Accuracy1% ±5 digits
ContinuityYes
True RmsYes
Min Temperature (° F)14
Max Temperature (° F)122
Min Temperature (° C)-10
Max Temperature (° C)50
Current FrequencyJaw: 45 to 66 Hz; iflex: 5 to 500 Hz
DisplayDigital, dual readout
Rf Communications2405 MHz to 2480 MHz, <100 mw output power
Safety RatingIEC 61010-1: Pollution degree 2
PowerTwo AA (alkaline)
Width (in)3.4
Length (in)10.8
Height (in)1.9
Width (cm)8.6
Length (cm)27.4
Height (cm)4.7
DescriptionNoncontact Voltage True-rms Clamp Meter with iFlex® Probe
