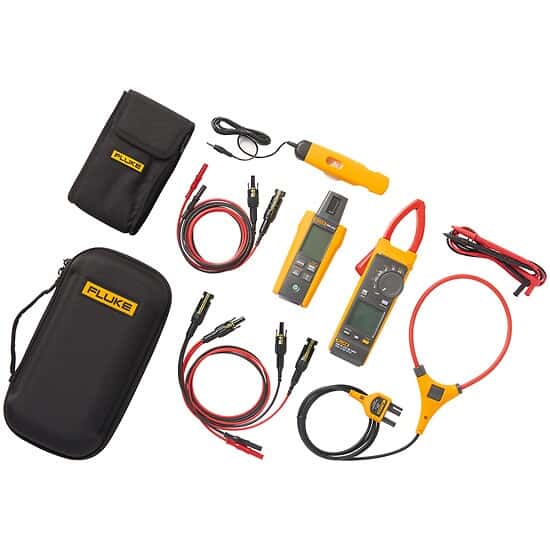

Fluke 393 FC CAT III 1500 V TRMS clamp meter, test leads (CAT III 1500 V rated, right angle plugs, with safety caps), iFlex 18 inch flexible current probe, TPAK magnetic hanging strap, premium carrying case, FLK-IRR1-SOL solar irradiance meter, FLK80PR-IRR external temperature probe with suction cup, C250 carrying case with shoulder strap, four AA alkaline batteries (installed), Pomona PVLEAD1 MC4 to 4 mm test lead set, and Pomona PVLEAD3 MC4 solar clamp test lead set.
Key Features
Thin jaw for access to cables in crowded combiner boxes
Visual Continuity turns provide a bright green light in the display, ideal when working in dark and noisy environments
Logging and reporting of test results via Fluke Connect software
When measuring AC current the included iFlex flexible current probe gives you unparalleled access to cable is tight spaces
Measure solar irradiance, ambient and PV module temperature, array orientation and tilt angles
MC4 test lead sets are designed for use with solar clamp meters that accept 4 mm banana plugs, rated to CAT III 1000 V / CAT IV 600 V
3 year warranty
More About this Item
The 393 FC CAT III 1500 V True-rms Clamp Meter with iFlex is designed for technicians who work in high voltage DC environment: solar arrays, wind power, electric railways, data centers battery banks for uninterruptible power supplies. The clamp will measure up to 1500 V DC, 1000 V AC, and up to 999.9 A DC or AC through the clamp jaw. The included iFlex flexible current probe extended AC current measurements up to 2500 amps. This clamp has a thin jaw, giving you access to cables in crowded combiner boxes. Test leads are designed with your work in mind, and are also rated to CAT III 1500 V DC.
Bundles are also available, combining the clamp meter with a wide array of solar tools to easily meet your needs.
Specifications
DC Max (Volts)1500
DC Voltage Accuracy1 % RD + 5 digits
DC Max (amps)999.9
DC Current Accuracy2 % RD + 5 digits
AC Max (Volts)1000
Ac Voltage Accuracy1 % RD + 5 digits (20 Hz to 500 Hz)
AC Max (amps)999.9
AC Current Accuracy2 % + 5 digits (10 Hz to 100 Hz), 2.5 % + 5 digits (100 Hz to 500 Hz) with jaw3 % RD + 5 digits (10 Hz to 500 Hz) with flexible current probe
Resistance Max (KΩ)60
Capacitance Max (mF)1
Capacitance Accuracy1 % RD + 5 digits
True RmsYes
DisplayDual display with backlight
Power2 AA IEC LR6 alkaline batteries
DescriptionSolar Clamp Meter, IRR1 Irradiance Meter, and MC4 Test Leads Bundle
