Achieve consistent results with built-in automatic calibration
Manage weighing on the intuitive 7” glass touchscreen display
Two touchless sensors—set to activate print, zero, tare, or calibrate
Digital leveling bubble ensures a smooth and straightforward setup
RS-232, USB, and Ethernet connections provide seamless data transfer
Supports HID connection to PC or keyboard without drivers
Save up to 1000 application sample libraries to easily manage multiple sample profiles
Power saving features include auto dim, auto standby, and sleep mode
Full metal housing offers durability
8200 g capacity with 0.01 g readability
2 year warranty
More About this Item
Enhance your workflow with the Explorer™ EXR precision balances featuring outstanding weighing performance, intuitive touchscreen display, and advanced communication capabilities. Automatic, user-triggered, and span calibration options ensure precise measurements; the built-in automatic calibration performs self-calibration using an internal mass. Select from 11 application modes: Basic Weighing, Parts Counting, Check Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Totalization, Formulation, Differential, Density Determination, Peak Hold.
Easily manage weighing operations on the 7” touchscreen display. An easy-to-clean, chemical-resistant glass panel displays vibrant colors for easy viewing. Touchless sensors located on the terminal activate often used functions such as print, zero, tare, or calibrate, simply wave your hand over the sensors to activate. Built-in RS-232, USB (A and C), and Ethernet connections provide seamless data transfer; order an optional dongle for Bluetooth® and Wi-Fi capabilities. Save and recall up to 1000 sample library records to simplify your weighing operation. Each record may contain minimum weight, sample name, sample ID, batch ID, project name, and more.
OutputUSB Host (Type A) x2; USB Device (Type C) x1; Ethernet x1; RJ11 for fingerprint accessory x 1; RS-232 x1; Optional Bluetooth/WiFi dongle (through USB Host Type A) x 1
USB InterfaceYes
RS-232 InterfaceYes
Stability IndicatorYes
Stabilization Time (Sec)1
Power (VAC)100 to 250
Power (Hz)50/60
Height (in)3 3/4
Width (in)15 1/2
Depth (in)15 1/2
Pan Length (in)7
Pan Width (in)7 7/8
Display Height (in)2 5/8
Display Width (in)4 3/4
Draft Shield Depth (in)15 1/2
Chamber Height (in)10 3/8
Chamber Width (in)7 1/8
Chamber Depth (in)6 3/4
Min Temperature (° C)10
Max Temperature (° C)30

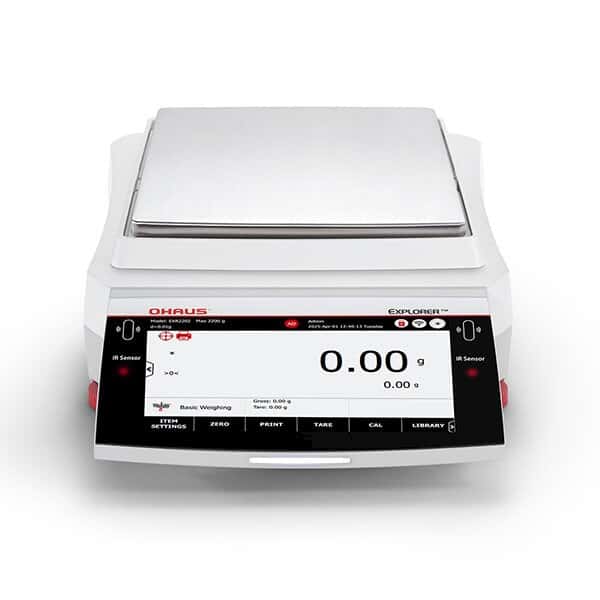

DescriptionExplorer™ EXR Series Precision Top Loading Balance, 8200g x 0.01g, Touch Screen
