190-504-III ScopeMeter, four VPS410-II probes, four TRM50 cable terminatiors, Li-ion battery pack, power adapter and cord, USB cable, hand strap, and hanging strap.
Key Features
Rated for industrial environments CAT III 1000 V/CAT IV 600 V
Automatically capture, view and analyze complex waveforms
USB and Wi-Fi download for analyzing data with FlukeView® software
Large, bright color display is easy to view in nearly any environment
Easy to store and view historical data and transfer to a PC via USB or Wi-Fi
IP51 rating, dust and drip-proof
Frequency spectrum using FFT-analysis
This 4 channel oscilliscope features a 500 MHz bandwidth and 0.7 ns rise time
3 year warranty
More About this Item

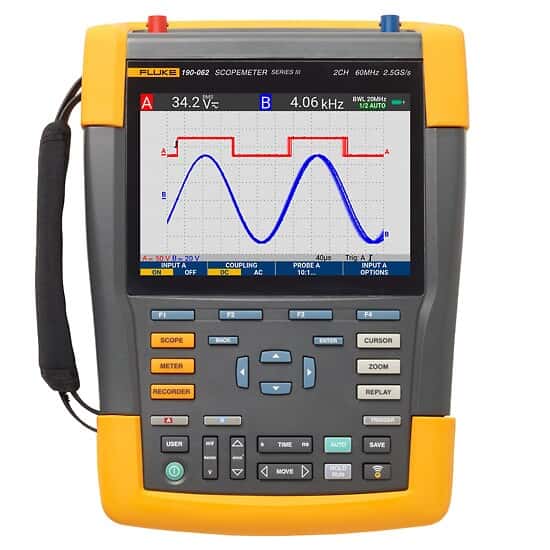

The Fluke® 190 Series III ScopeMeter® is a handheld digital oscilloscope features advanced connectivity options to make data analysis, data sharing, and maintenance or troubleshooting decisions faster and easier. Included Wi-Fi adapter communicates with PCs and mobile devices on wireless LAN using the downloadable Fluke Connect app. A mini-USB-B is provided which allows for interconnection to PC for remote control and data transfer under PC-control using FlukeView-2. Choose a ScopeMeter kit for FlukeView® software, which enables further collaboration, data analysis, and archiving of critical test information.
Choose from two or four channel models with a wide range of bandwidth options. Fast sampling rates up to 5.0 GS/s, 200 ps resolution and deep memory of 10,000 samples per channel allow high-accuracy capture and display of waveform details, noise, and other disturbances. Perform timing or amplitude related measurements on three phases or three-axis control systems, or simply compare and contrast multiple test points in a circuit under test. Features like TrendPlot™ Paperless Recorder, ScopeRecord™ Mode, Connect-and-View™ Triggering and a unique 100-screen Replay function help you quickly diagnose issues to minimize repair costs and downtime.
Specifications
Bandwidth (MHz)500
Channels4
Sample Rate (GS/s)2.5
Rise Time0.7 ns
Input Impedance1 MΩ (± 1 %) // 15 pF (± 2.25 pF)
WaveformCompare and pass/fail testing
Record LengthUp to 10,000 samples per channel
Trigger TypesInput A, B, C or D
Fft AnalysisFrequency spectrum using FFT-analysis
ConnectivityUSB, mini-USB-B, and WiFi
Voltage (AC/DC) RangeCAT III 1000 V / CAT IV 600 V (maximum voltage between any contact and earth-ground voltage level)
Input SensitivityWith 10:1 probe, 20 mV to 1000 V/div; With 100:1 probe, 200 mV to 10 kV/div; Direct (1:1), 2 mV to 100 V/div
Coupling (Trigger System)Input coupling AC or DC, with ground level indicator
