Easily view bright white digital readings from across the room
Attach quickly to existing baths with universal clamp
Automatic high temperature and low liquid level shutoff optimize safety
Efficiently controls temperature in 50 L bath tank
Easily change between internal and external circulation
USB and RS-232 interfaces transfers data quickly to PC or other external devices
2 year warranty
More About this Item

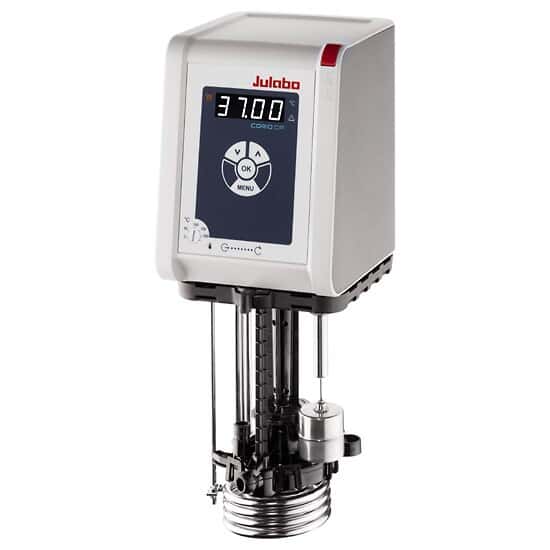

The CORIO™ heating immersion circulators are ideal for precise temperature control of samples. A universal mounting clamp easily attaches the circulator onto an existing straight or round bath tank with a wall thickness up to 26 mm. All operating controls and safety functions are easily accessible from the front of unit, while the bright LED display allows temperature reading to be viewed from across the room. Other features include an adjustable pump nozzle, automatic high temperature shutoff, low liquid level alarm, and lockable power cord.
Choose from three CORIO™ models—C, CD, or CP. CORIO C is the basic model for internal standard applications for tanks up to 30L, no interface control, and a maximum working temperature of 100 °C. CORIO CD has all the advantages of the CORIO C plus a pump for internal and external applications, USB interface, and a maximum working temperature of 150 °C. CORIO CP has all the same features of the CORIO CD, with a pump for internal and external applications, plus USB and RS-232 interfaces, and a maximum working temperature of 200 °C.
These advanced heating immersion circulators are designed for both internal and external applications in bath tanks with a maximum filling volume of 50 L. They offer all the features of the CORIO C and CD models plus RS-232 interface for remote control and transfer of data to a PC, pump control level to easily change between internal and external circulation, and inclined pump connections (M16x1) to facilitate the connection of applications.
Specifications
Bath TypeHeating Immersion Circulator
Reservoir Capacity (L)50
Max Temperature (° C)200
Min Temperature (° C)20
Temperature Stability (° C)±0.02
Pump TypeImmersion Pump
Max Flow Rate (L/min)27
Max Pump Pressure (PSI)10.2
Max Pump Pressure (mbar)703
Low-Level CutoffYes
High-Temperature CutoffYes
Width (in)5 1/5
Length (in)6 19/64
Height (in)14 19/64
Immersion Depth (in)6 19/64
Heater Wattage (watts)1000
Temperature ControlPID
Temperature SettingDigital
Temperature SensorPt RTD
Port ConnectionsM16x1(M)
InterfaceUSB and RS-232
Timer0 to 999 minutes
Display TypeLED
Wetted MaterialsStainless steel
Power (VAC)100 to 115
Power (Hz)50/60
DescriptionHeating Immersion Circulator, 20 to 200 °C, Up to 50 L, USB and RS-232, 1 kW; 100-115 VAC, 50/60 Hz
