Stray Light≤ 0.1%T at 340 nm; ≤ 0.5%T at 220 nm; ≤ 2.5%T at 198 nm
Source LampTungsten lamp
Source Lamp Life2000 hours
Beam TypeDual beam with reference detector
Bandwidth4 nm
Min Wavelength (nm)330
Max Wavelength (nm)1000
Wavelength Accuracy±1.5 nm
Min Photometric - Absorbance (A)-3
Max Photometric - Absorbance (A)5
Photometric Noise≤ 0.001 at 0 A; ≤ 0.002 at 1 A; ≤ 0.004 at 2 A
Photometric Drift≤ 0.002 A/h
Photometric Accuracy± 0.002 at 0.5 A; ± 0.005 at 1.0 and 2.0 A; ± 0.010 at 2.5 A
DetectorDual silicon photodiodes
Scan Timemax 2800 nm/min
Output3 x USB-A, 1 x USB-B, 1 x Pogo Pin
Display Type4.3" capacitive touchscreen
Software compatibilityEasyDirect™ UV/VIS
Width (cm)20.1
Height (cm)17.6
Depth (cm)36.2
Width (in)7 29/32
Height (in)6 29/32
Depth (in)14 1/5
Power (VAC)100 to 240
Power (Hz)50/60

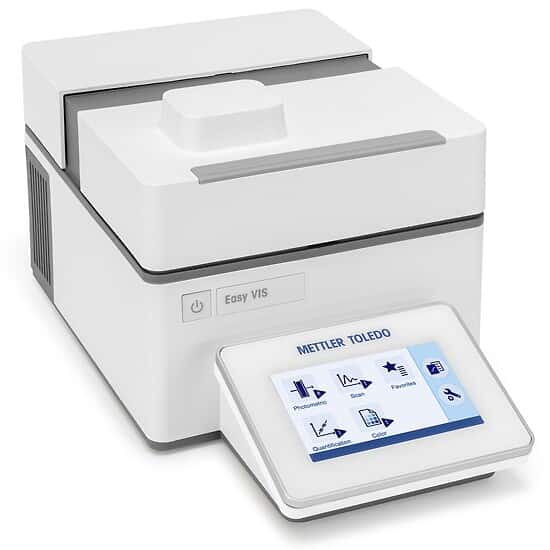

DescriptionEasy VIS Visible Spectrophotometer; 100-240 VAC, 50/60 Hz
Warranty1 year
Includes
cuvette carousel 10/16 mm, cuvette carousel 20/30 mm, cuvette carousel 40/50 mm/1", 10 mm optical glass cuvette, dust cover, allen wrench, test report, and AC adapter with power cable.
Key Features
Conventional spectrophotometry, color measurements, and water analyses can be performed using one instrument
Exchangeable XPathHolder™ cuvette carousels allow you to shift quickly between seven different path lengths
Avoid errors — PathDetect™ securely checks the path length so your results are accurate
Make setup easy with the user-friendly 4.3” touchscreen and interface with workflow guidance and integrated tutorials
SmartLid™ automatically starts the measurement, increases productivity, and avoids time-consuming task repetition
Measures in the visible range with an easy-to-replace tungsten lamp light source
1 year warranty
More About this Item
The Mettler Toledo EasyPlus spectrophotometers combine conventional spectrophotometry, color measurements, and water analyses in one instrument. Built-in methods eliminate calculation and transcription errors and are easily accessed with built-in features such as a favorite list and LongClick™. Photometric data is automatically calculated using pre-programmed methods to obtain results quickly. Methods that are compliant to standards such as ASTM, DIN, ISO, and EPA eliminate the need for post-measurement calculation and data transcription to achieve accurate results efficiently.
Color measurements are obtained from absorbance or transmittance measurements converted to a color value according to the selected color scale. 30 color scales are available including CIELAB, APHA, Gardner, and more. Water analysis is performed with the SQKitReader™ accessory, sold separately as item 83700-80. SQKitReader™ barcode reader scans Spectroquant™ water test kit barcodes to automatically start methods inputted on the user-friendly touchscreen.
